ATV

Redstone 550

Joy In Every Task

Versatile ATV for work and play

redstone 550 hero
48 hpPure Horsepower
900 kgBraked Towing Capacity
Tri-ModeStandard / Work / Sport

Color Options

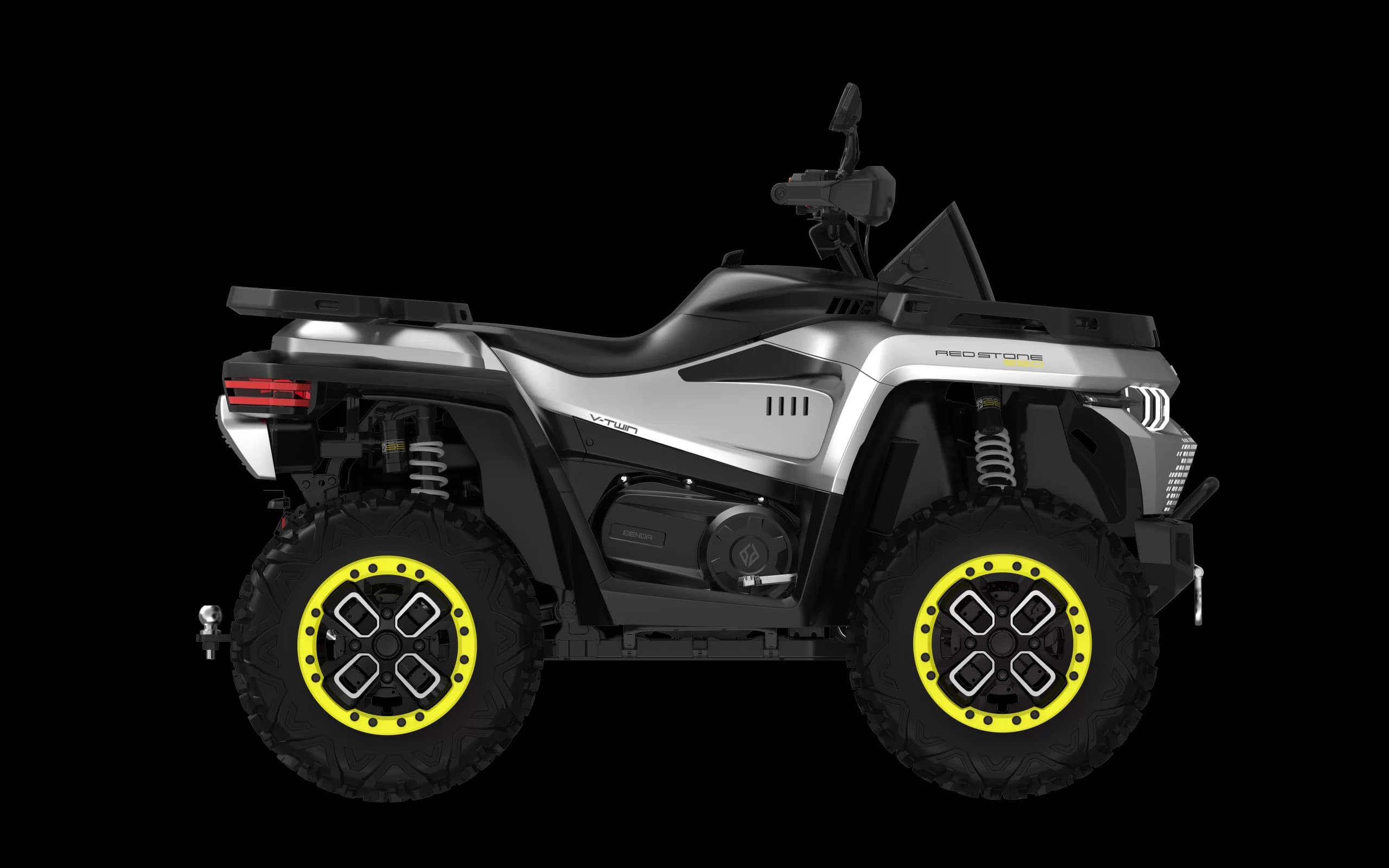

Redstone 550 - Rime Silver

Redstone 550

Key Features

Redstone 550 โ€” Mid-Class Leading Power

Mid-Class Leading Power

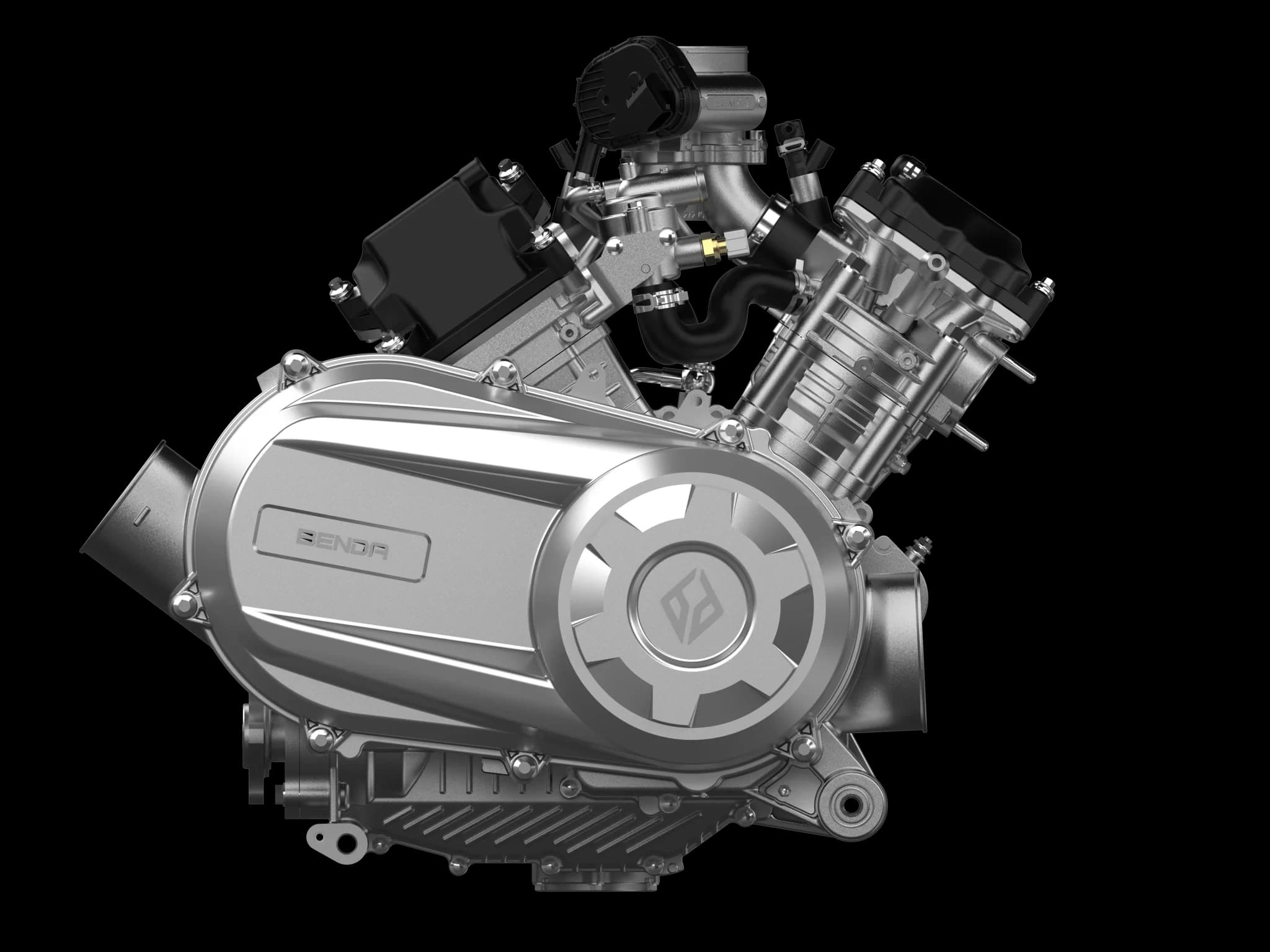

A 48 hp V-twin developed in-house, paired with an intelligent electronic throttle for precise control, quick response and better fuel economy โ€” smooth enough for a long day of work, willing enough for the weekend.

Redstone 550 โ€” Tri-Mode Drive System

Tri-Mode Drive System

Standard, Work and Sport modes change throttle response and power delivery, so the same machine hauls a loaded trailer in the morning and plays on the trail in the afternoon.

Redstone 550 โ€” High-Strength, Lightweight Chassis

High-Strength, Lightweight Chassis

Extensive use of chromium-molybdenum steel and forged aluminium raises load-bearing capacity by 20% while cutting weight โ€” better rigidity, sharper handling, more margin for safety.

Redstone 550 โ€” Effective Thermal Management

Effective Thermal Management

Directed air intake and guided cooling keep airflow moving through the engine bay, protecting the engine through low-speed work where heat builds fastest.

Redstone 550 โ€” Centre-Positioned Gear Shifter

Centre-Positioned Gear Shifter

Moving the shifter to the centre breaks with the industry norm: a cleaner cockpit, more legroom, and a smooth ergonomic surface where your knee used to meet a lever.

Redstone 550 โ€” Automotive-Grade Matrix LED Lighting

Automotive-Grade Matrix LED Lighting

Matrix LED headlights throw a wide, even beam far down the trail โ€” a genuine safety gain for early starts and late finishes, not just a styling cue.

Specifications

Engine

EngineV2, 4-Stroke SOHC, Liquid-Cooled
Displacement498.4cc
Power48hp (36kW)
Torque46N.m / 5500rpm
Cooling SystemLiquid-Cooled
Fuel SystemEFI
TransmissionCVT L/H/N/R/P
Final DriveSelectable 2WD/4WD With Diff-Lock

Chassis

Front SuspensionDual A-Arm With Sway Bar, Travel 230mm
Rear SuspensionDouble A-Arm
Front BrakeHydraulic Disc, ABS
Rear BrakeHydraulic Disc, ABS
Front Tire26ร—9-14in
Rear Tire26ร—11-14in

Dimensions

Length2165mm
Width1245mm
Height1260mm
Seat Height950mm
Wheelbase1300mm
Weight415kg (dry)
Fuel Capacity30L

Electronics

ABSABS
Riding ModesTri-Mode: Standard / Work / Sport
Special FeaturesOne-Button Electric Start ยท Automotive-Grade Matrix LED Lighting ยท Centre-Positioned Gear Shifter

Additional Specifications

Ground Clearance305mm
Braked Towing Capacity900kg
Wheels14in. Alloy Beadlock
Shocks (F/R)Adjustable Gas Shock Absorber

Gallery

redstone 550 engine
redstone 550 gallery 1
redstone 550 gallery 2
redstone 550 official 1
redstone 550 official 2
redstone 550 official 3
redstone 550 official 4
gallery redstone 550 side
