ATV
Benda Redstone 1000 MUD
The King of Mud
Built for the toughest terrain

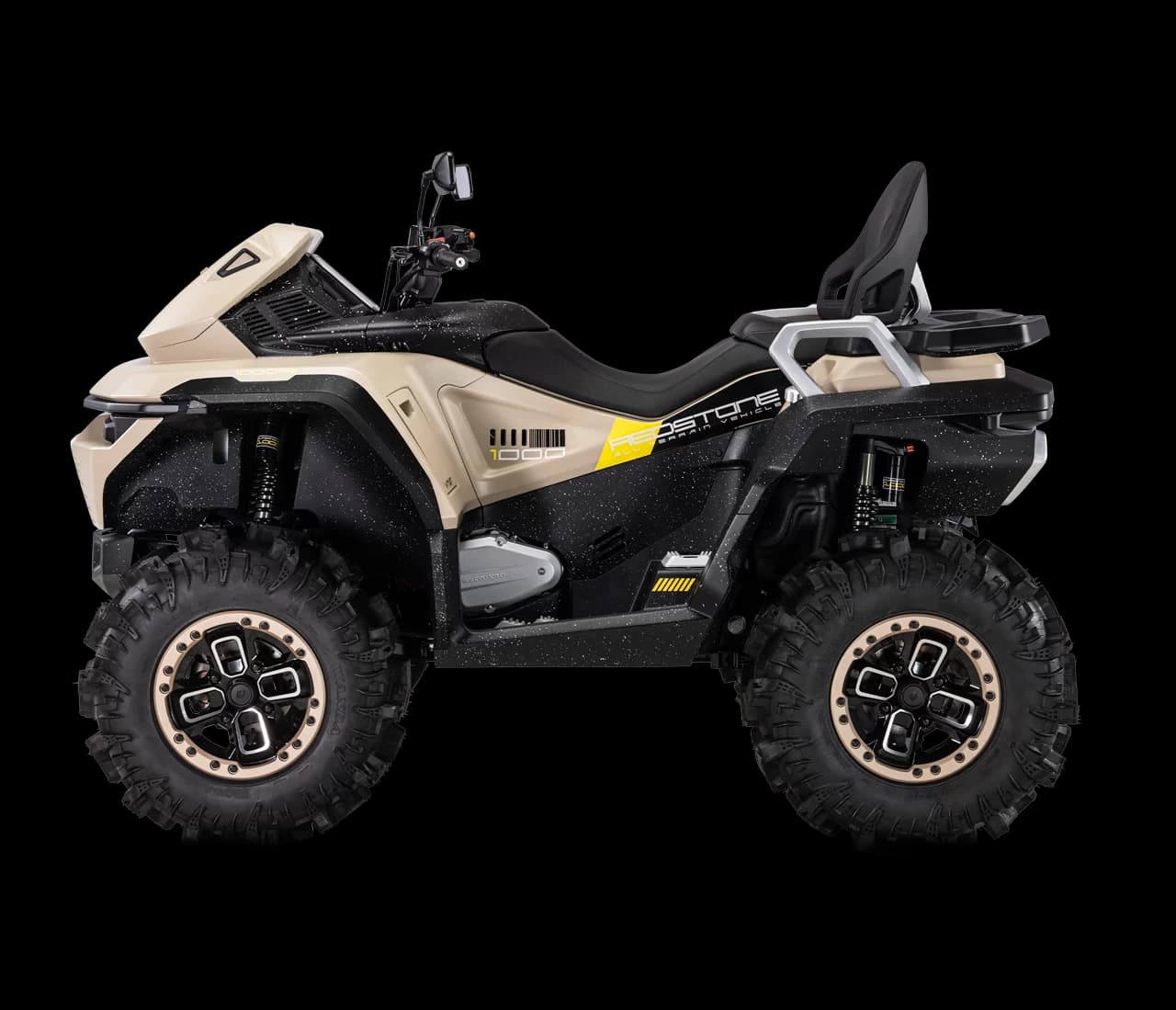

Redstone 1000 MUD
Key Features
Built for Deep Mud
365 mm of ground clearance on 30-inch mud-specific tires: the MUD goes through terrain where a standard utility quad turns around.
Raised Intake and Cooling
A high-mounted radiator fan, relocated CVT intake and exhaust vents, and a raised air-filter intake significantly increase wading depth and keep the cooling system working when the mud gets deep.
102 hp of In-House V-Twin
The same 997.1 cc V-twin and 92 N·m of torque as the 1000 R2, geared for the low-speed grunt that pulling through mud demands.
230 mm Rear Suspension Travel
An independent torsional trailing arm soaks up ruts and hidden obstacles at the rear; adjustable gas shocks at both ends let you tune for load.
Tri-Mode Drive System
Standard, Work and Sport modes adapt throttle and power delivery to what you are asking of the machine.
Automotive-Grade Matrix LED Lighting
Matrix LED headlights cut through spray and low light — the conditions this machine is built to be used in.
Specifications
Redstone 1000 MUDEngine
- Engine
- V2, 4-Stroke SOHC, Liquid-Cooled
- Displacement
- 997.1cc
- Power
- 102hp (76kW)
- Torque
- 92N.m / 6500rpm
- Cooling System
- Liquid-Cooled
- Fuel System
- EFI
- Transmission
- CVT L/H/N/R/P
- Final Drive
- Selectable 2WD/4WD With Diff-Lock
Chassis
- Front Suspension
- Dual A-Arm With Sway Bar, Travel 180mm
- Rear Suspension
- Independent Torsional Trailing Arm, Travel 230mm
- Front Brake
- Dual 220mm Disc
- Rear Brake
- Dual 220mm Disc
- Front Tire
- 30×9-14in
- Rear Tire
- 30×11-14in
Dimensions
- Length
- 2370mm
- Width
- 1280mm
- Height
- 1520mm
- Seat Height
- 1030mm
- Wheelbase
- 1500mm
- Weight
- 465kg (dry)
- Fuel Capacity
- 30L
Electronics
- Riding Modes
- Tri-Mode: Standard / Work / Sport
- Special Features
- One-Button Electric Start · Automotive-Grade Matrix LED Lighting · Centre-Positioned Gear Shifter
Additional Specifications
- Ground Clearance
- 365mm
- Towing Capacity
- 792kg
- Wheels
- 14in. Aluminum
- Shocks (F/R)
- Adjustable Gas Shock Absorber
