Cruiser

Chinchilla 500

Bigger Stance, Purer Cruising

The ultimate mid-range V-Twin cruiser experience

chinchilla 500 hero
35 kW / 9000 rpmMaximum Power
42 Nยทm / 7200 rpmMaximum Torque
1550 mmWheelbase

Color Options

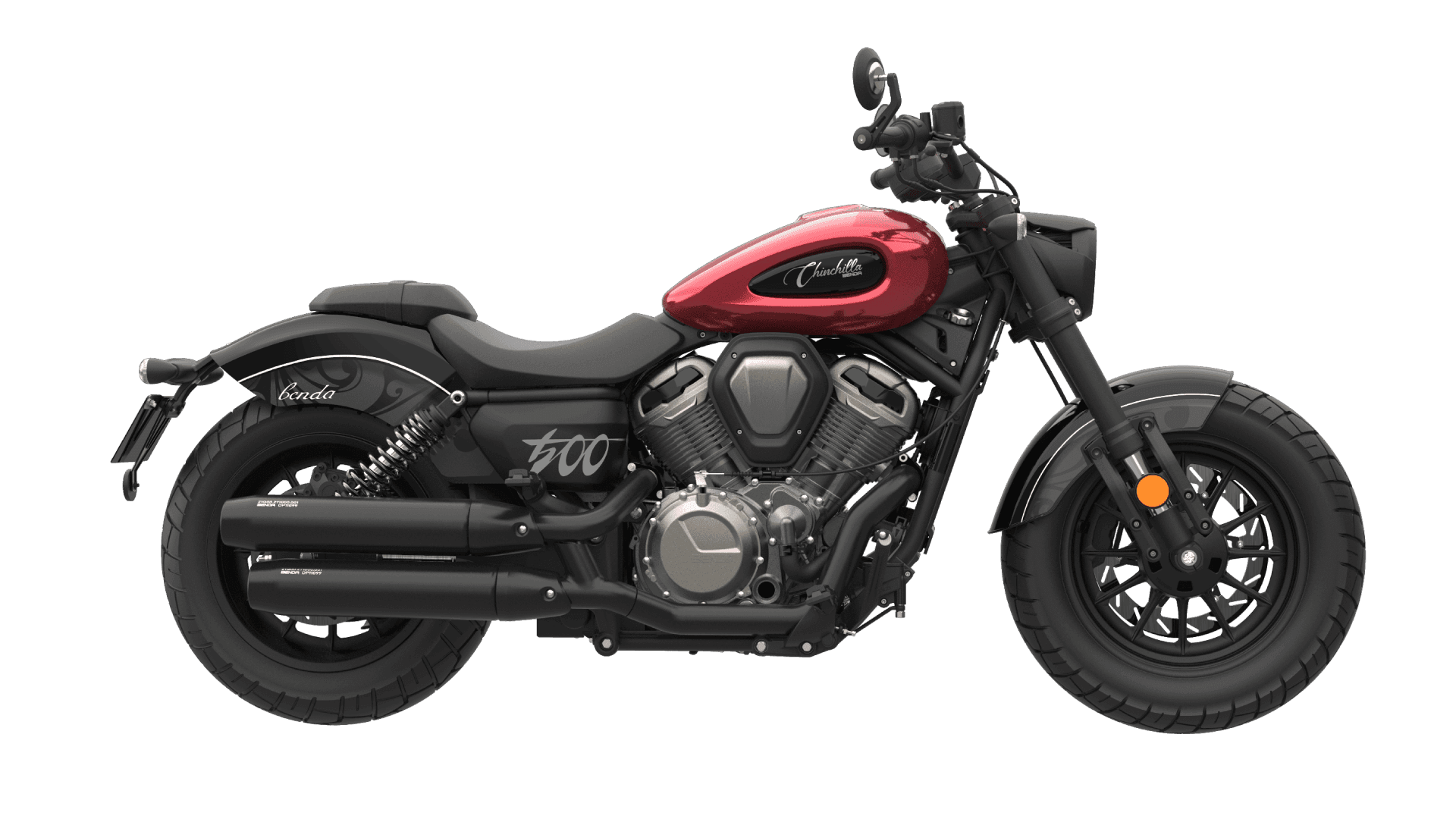

Chinchilla 500 - Adventure Red

Chinchilla 500

Key Features

Chinchilla 500 โ€” Modular Frame Platform

Modular Frame Platform

Benda builds the Chinchilla on a modular frame designed to extend and adapt โ€” the same platform philosophy that lets one architecture carry several very different motorcycles.

Chinchilla 500 โ€” 475.6 cc Liquid-Cooled V-Twin

475.6 cc Liquid-Cooled V-Twin

35 kW at 9000 rpm and 42 Nยทm at 7200 rpm from an 8-valve liquid-cooled V-twin, tuned for usable midrange rather than a peaky top end.

Chinchilla 500 โ€” Belt Final Drive

Belt Final Drive

A belt runs quieter than a chain, needs no lubrication and asks almost nothing of you between services โ€” the right answer for a cruiser that gets ridden, not maintained.

Chinchilla 500 โ€” USD Fork and Twin Discs

USD Fork and Twin Discs

An upside-down fork with 129 mm of travel and 320 mm twin front discs, with ABS and TCS as standard.

Chinchilla 500 โ€” 1550 mm Wheelbase

1550 mm Wheelbase

A long wheelbase and a 705 mm seat height give the Chinchilla stability at speed and confidence at a stop โ€” big-bike presence without big-bike intimidation.

Chinchilla 500 โ€” Full-Colour Round LED Display

Full-Colour Round LED Display

A 3-inch round full-colour display keeps the classic cruiser silhouette while showing everything a modern rider expects.

Specifications

Engine

EngineV2, 8 Valves, Liquid-Cooling
Displacement475.6cc
Power35kW (47hp) / 9000rpm
Torque42N.m / 7200rpm
Cooling SystemLiquid-Cooling
Fuel SystemEFI
Transmission6-Speed
Final DriveBelt Drive

Chassis

FrameCradle Type Steel Frame, Aluminum Alloy Swingarm
Front SuspensionUSD Fork, Travel 129mm
Rear SuspensionDual Hydraulic Shock Absorption, Travel 65mm
Front Brake320mm Twin Disc, 4ร—ฯ†32mm Pistons
Rear Brake260mm Single Disc, 2ร—ฯ†34mm Pistons
Front Tire150/80 R16
Rear Tire180/65 R16

Dimensions

Length2220mm
Width890mm
Height1150mm
Seat Height705mm
Wheelbase1550mm
Weight215kg
Fuel Capacity16L

Electronics

ABSABS
Traction ControlTCS
Display3-inch Round Full-Colour LED

Additional Specifications

Compression Ratio11.5:1
Bore ร— Stroke69 ร— 63.6mm
ClutchMulti-Plate, Oil-Bath, Slipper Clutch
Ground Clearance150mm
COโ‚‚ Emission106g/km
Fuel Consumption4.5L/100km
HomologationE-Mark, EU5+

Gallery

chinchilla 500 showcase
chinchilla 500 banner chinchilla500
chinchilla 500 official 1
chinchilla 500 official 2
chinchilla 500 official 3
chinchilla 500 official 4
chinchilla 500 official 5
chinchilla 500 official 6
gallery chinchilla 500 side
